Filtration units

Our dry location systems are designed to provide safe, efficient, and organized workspaces for oil and gas operations:



Enhanced Safety with non-slip surfaces and improved site conditions.



Reduced Environmental Impact by minimizing mud and fluid waste.



Cost-Effective Operations through efficient site setup and maintenance.

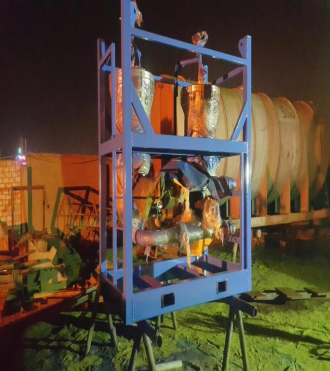

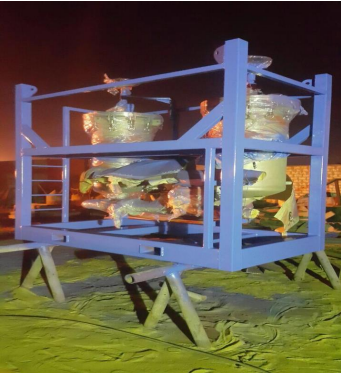

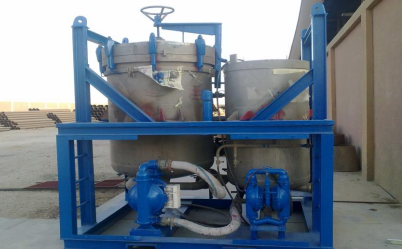

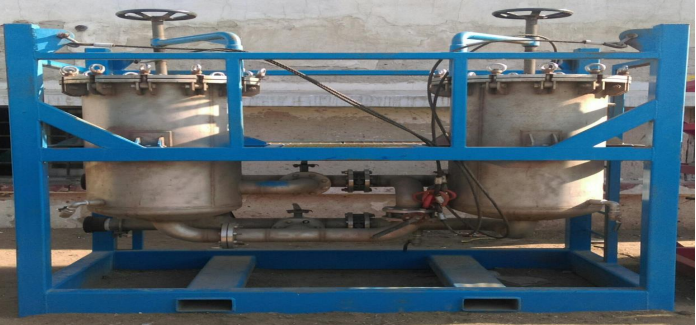

VERTICAL PRESSURE LEAF FILTER UNIT

The Vertical Pressure Leaf or Diatomaceous Earth filter unit is completely self-contained and equipped with all necessary auxiliaries to perform an effective filter job. The large filtration area of the VPL/ DE filter unit allows filtering fluids with a high dirt load, at a high flow rate, down to low NTU. The process design allows a laminar flow through the filter vessel and leafs. This results in a long filtration cycle and the lowest possible NTU output. There is no need for opening the filter vessel during clean out. This system saves up to 90% down time compared to conventional VPL system and filter presses. The Vertical Pressure Leaf or Diatomaceous Earth filter unit is completely self-contained and equipped with all necessary auxiliaries to perform an effective filter job. The large filtration area of the VPL/ DE filter unit allows filtering fluids with a high dirt load, at a high flow rate, down to low NTU. The process design allows a laminar flow through the filter vessel and leafs. This results in a long filtration cycle and the lowest possible NTU output. There is no need for opening the filter vessel during clean out. This system saves up to 90% down time compared to conventional VPL system and filter presses.



APPLICATIONS

Completion fluids

 Work over fluids

Offshore brines

Seawater Waste

water treatment

FILTER UNIT RANGE

420 VPL-DE

600 VPL-DE

840 VPL-DE

1200 VPL-DE
